Machine Appearance

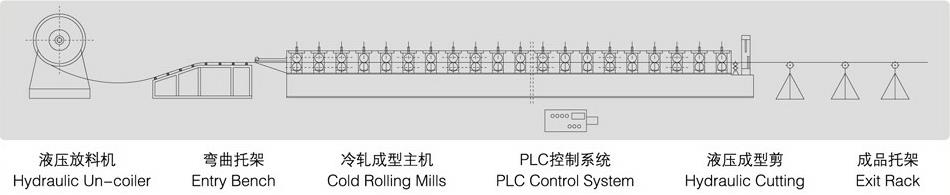

Main Components
1. Manual Decoiler
2. Feeding Platform
3. Roll Forming Machine
4. Hydraulic Cutting Device
5. Pump Station
6. PLC Control System
7. Receiving Table
Technical Specification
Working Process
The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep prodcts accurate.
Machine Parameters
NO | Type | Specification | |
1 | Raw material | Type | PPGI/GI |
Material width | 1250mm | ||
Thickness | 0.3-0.6 mm | ||
2 | Decoiler | Operation | Manual |
Weight apacity | 5 Tons | ||
3 | Roll Forming Machine | Roller station | 19 steps |
Diameter of shaft | 70 mm-0.01~0.03 | ||
Shaft Material | 45# with 0.05mm chrome | ||
Roller Material | 45# Forged Steel | ||
Transmission | Gear & Sprocket | ||
Bearing Type | 6210 | ||
Under Frame | H-beam | ||
Sidewall Frame | 16 mm Steel Plate | ||
Driving Type | Servo Motor 7.5KW | ||
Cutting Type | Guide Pillar with Electrical Motor 3.0KW | ||
Cutting Blade | Cr12Mov | ||
Voltage | 380V/50HZ, 3 phase | ||
Working speed | 20-25 m/min | ||
5 | Control box | Electric box | Import Brand PLC control system, inventer |
PLC brand | Delta/Siemens/Pansonic | ||
Inverter brand | Delta/Siemens/Sanjing | ||
Language | Chinese / English | ||
