IBR Roof Sheet Making Machine Trapezoidal Tile Sheet Roof Wall Panel Roll Forming Equipment

Inquire Now Next Product

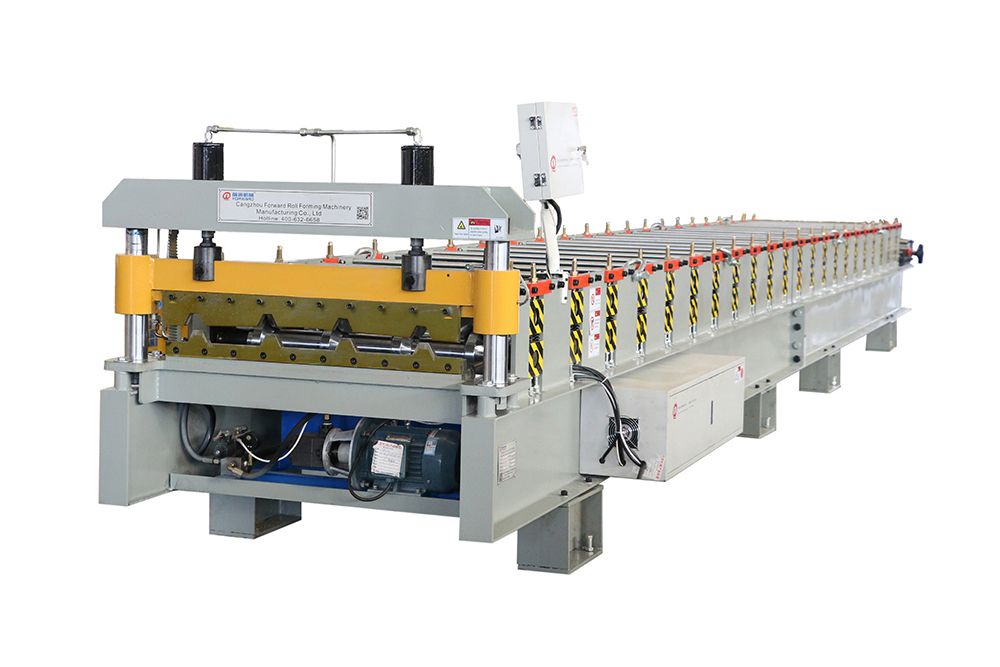

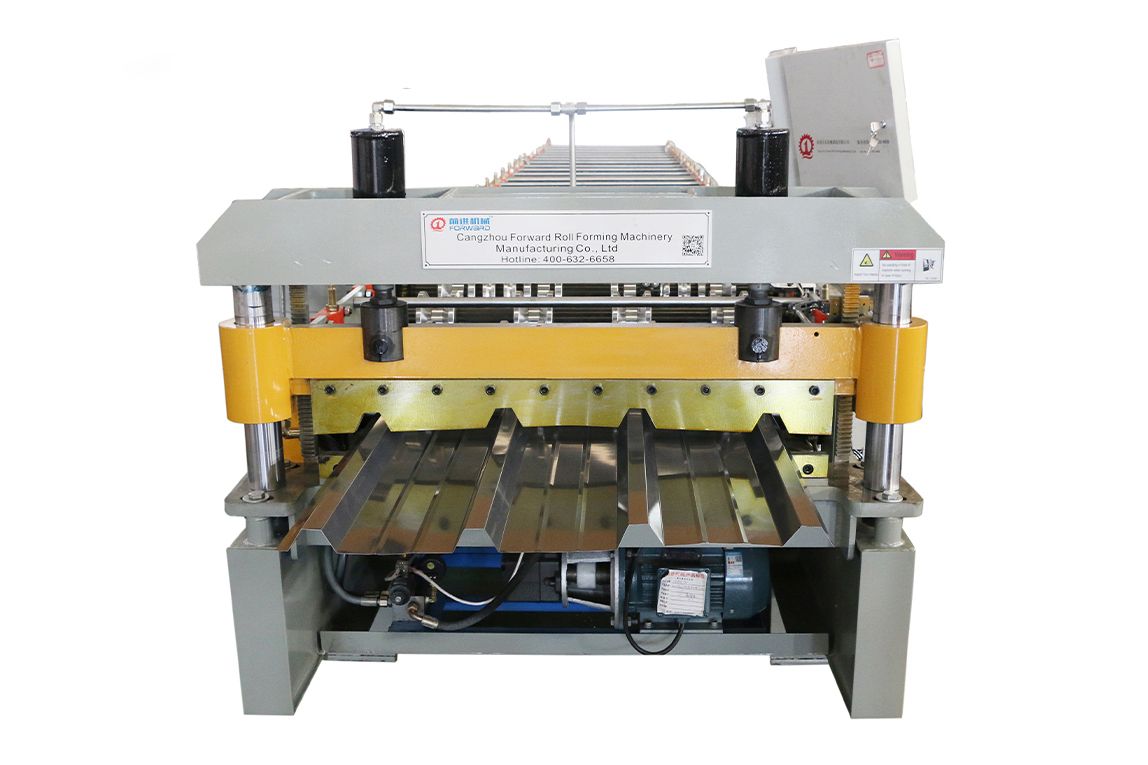

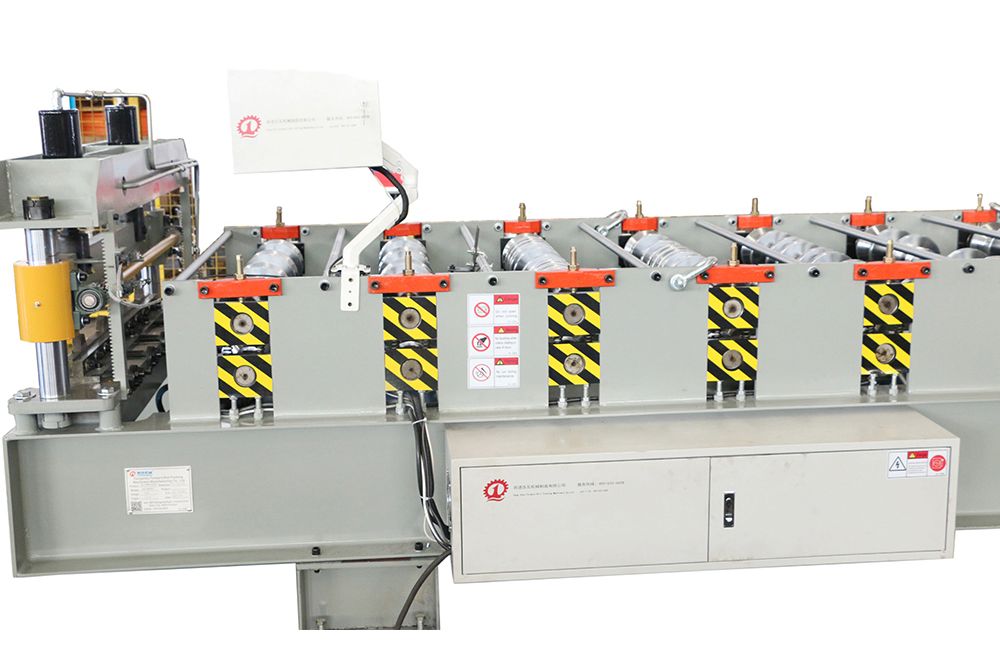

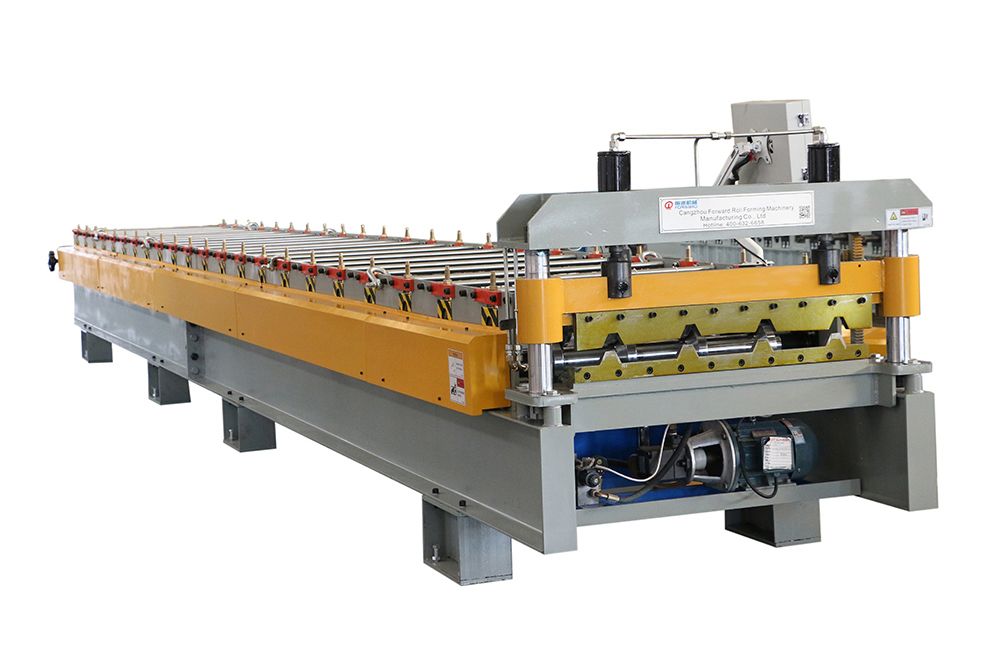

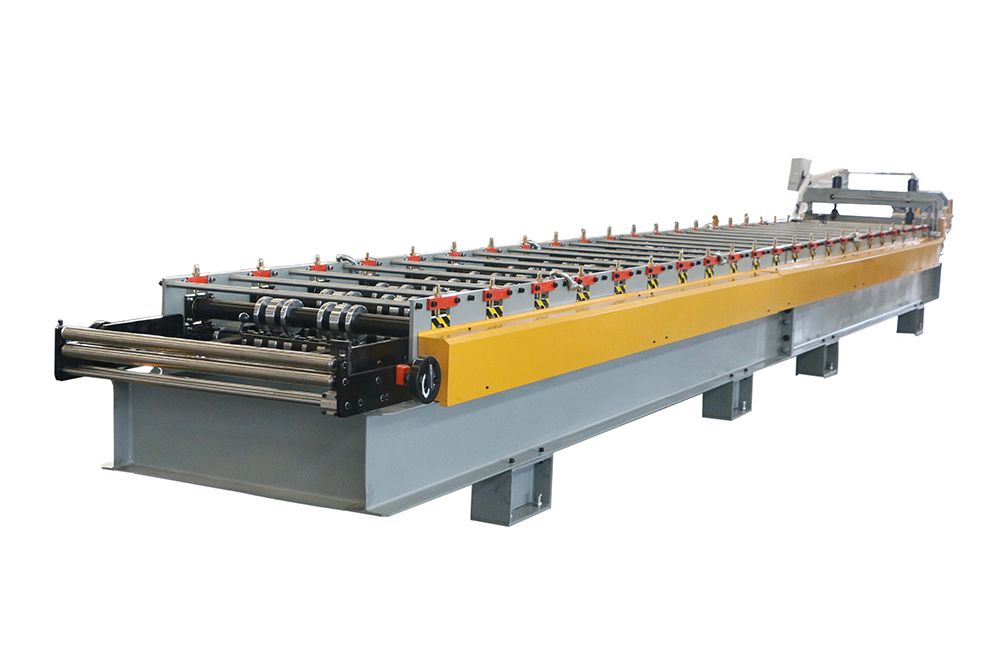

Machine Appearance

YX-37-250-750屋面板成型机 (6).jpg

YX-37-250-750屋面板成型机 (12).jpg

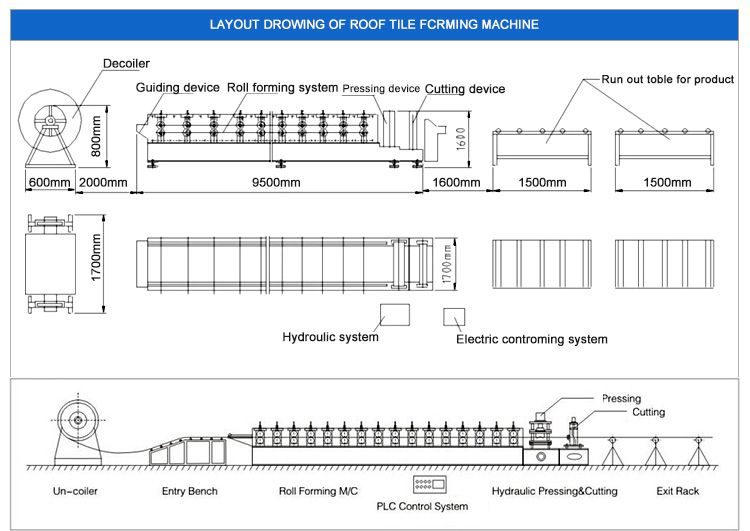

Main Components

Technical Specification

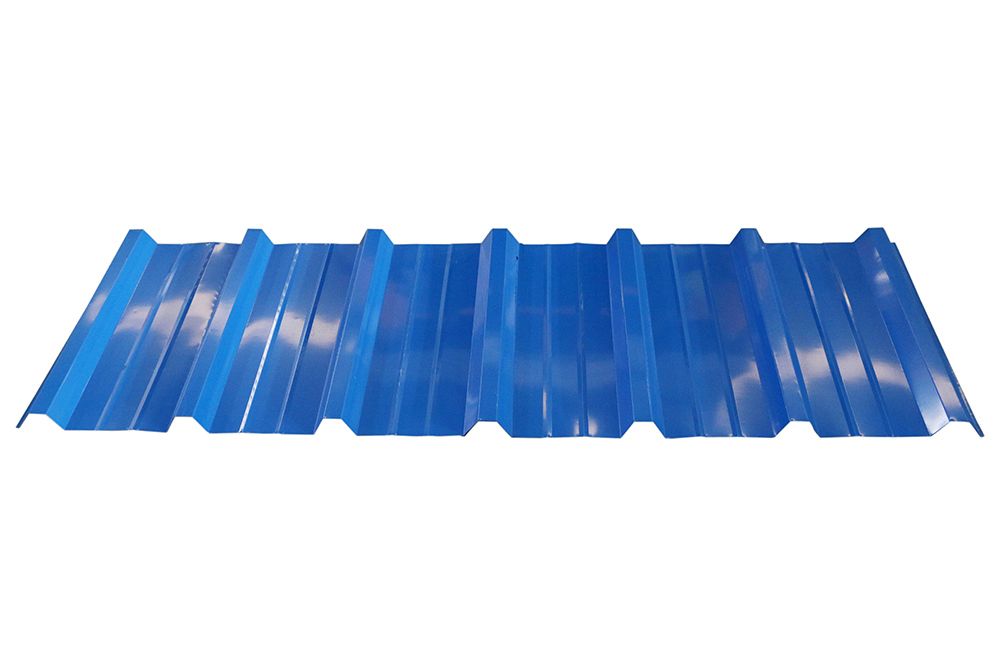

IBR, abbreviated from “Inverted Box Rib”, usualy designed for the outside cladding or roofing materials in commercial, industrial and residential buildings, and the raw material is mostly Galvanized steel with the thickness from 0.5mm-0.8mm, and the width 925mm and 1219mm. An IBR sheet roll forming machine is designed to produce IBR roofing sheets with effective width 686mm or 890mm from the above raw materials.

Production Parameters

No.	Item	Specification
Main Machine	Raw Material	Pre-painted Steel Coil, Galvanized Steel Coil
	Feeding Thickness	0.2-0.6mm
	Machine Body Thickness	16mm steel plate
	Solid Shaft Material	High grade 45# steel , key-way treatment & polished
	Shaft Diameter	70mm-0.01mm
	Roller Station	22 roller stations
	Roller Material	High grade 45# steel with CNC process and key-way
	Coder Brand	Shanghai/Siemens/Omron
	Line Speed	20-30m/min
	Transfer Method	Synchronous belt , more stable and stronger
	Power	7.5KW Servo motor
	Dimension of the Machine	10.5M1.4M1.3M
	Weight	About 6500KGS
Cutting Machine	Type	Servo motor for electrical cutting
	Thickness Capacity	0.2-0.6mm
	Width Capacity	As drawing
	Cutting Blade Material	Cr12Mov, quenching
	Hardness	55-58HRC
	Cutting Tolerance	+/- 1mm
	Cutting Operating	Stop to Cut
Control Machine	Type	Delta/Siemens PLC controlled
	PLC brand	Delta/Siemens PLC controlled
	Frequency Converter	Delta/Siemens PLC controlled
	Touch Screen	7 inches
