Galvanized corrugated roof sheet forming machine

  • Galvanized corrugated roof sheet forming machine
  • Galvanized corrugated roof sheet forming machine
  • Galvanized corrugated roof sheet forming machine
  • Galvanized corrugated roof sheet forming machine
  • Galvanized corrugated roof sheet forming machine

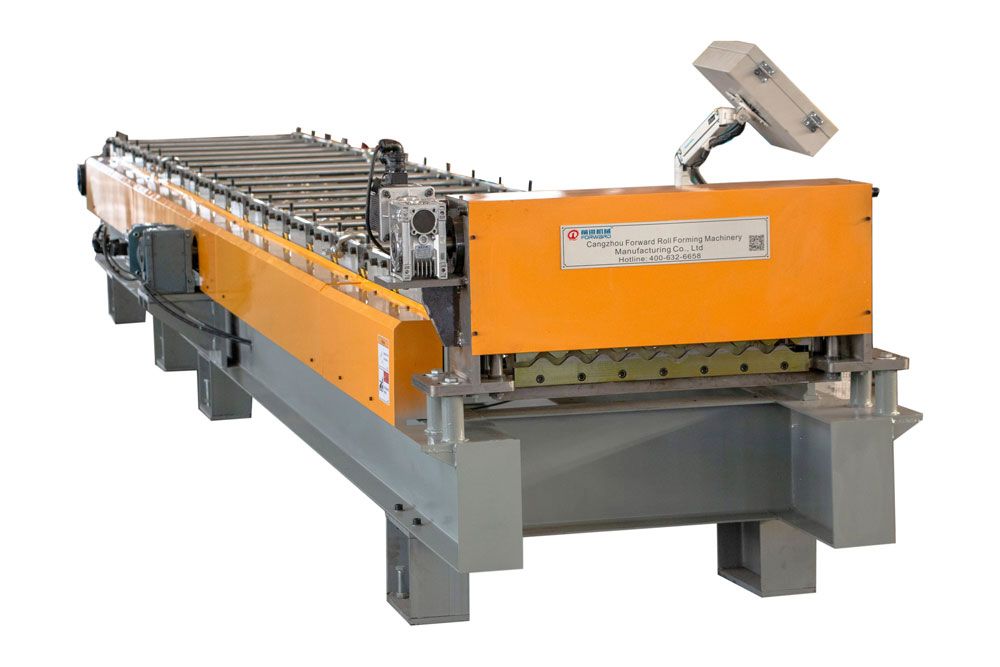

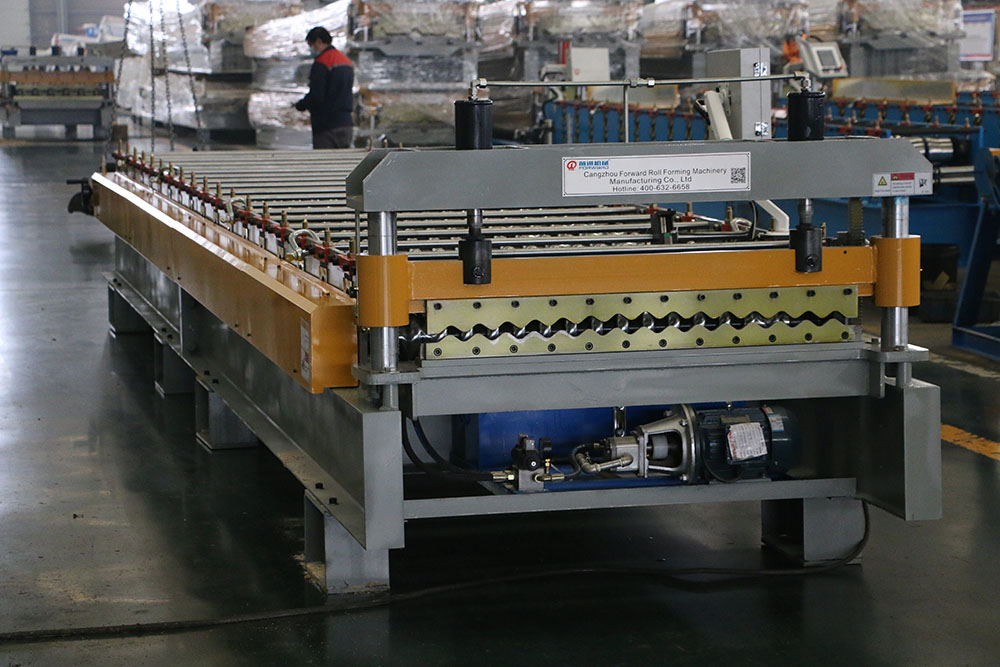

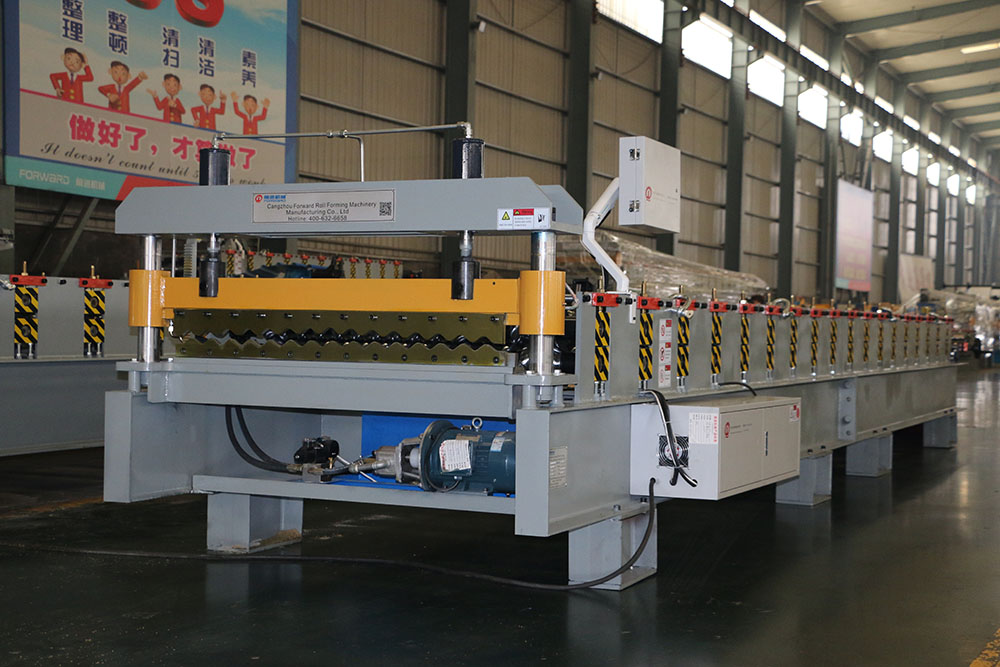

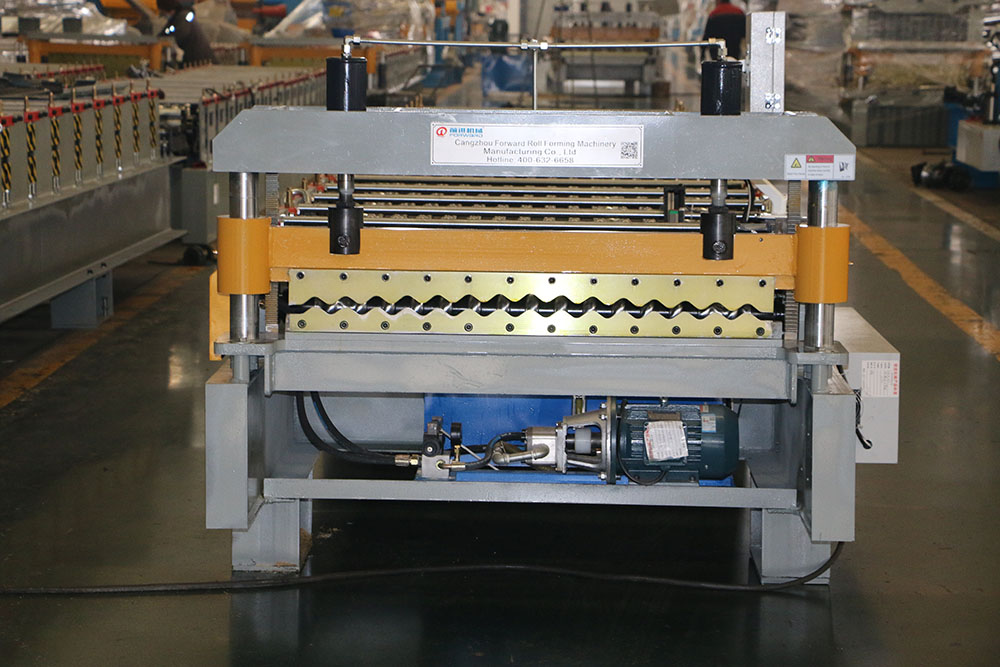

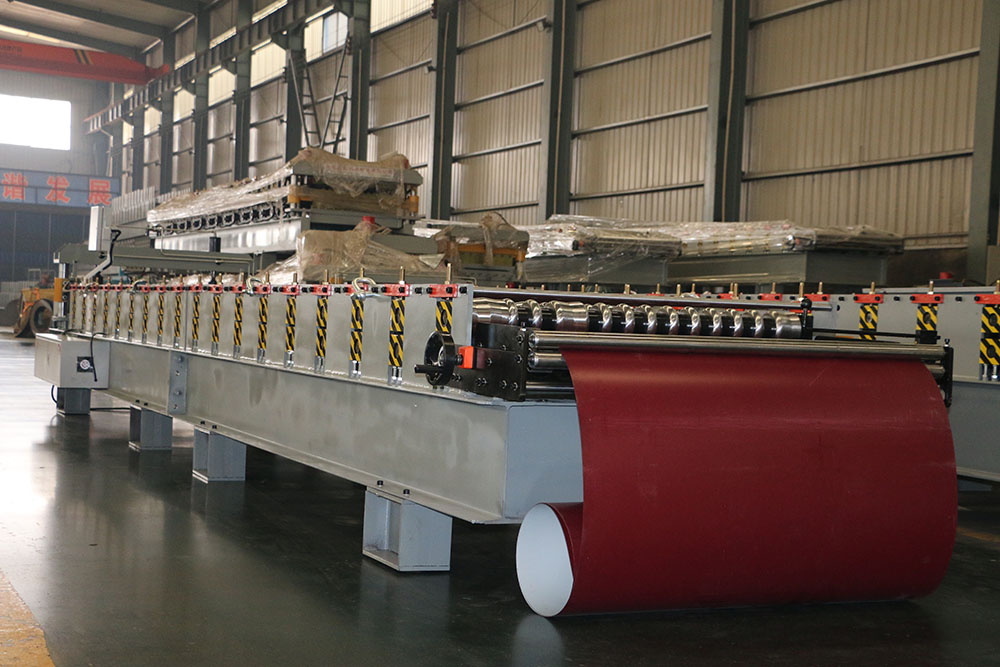

Machine Appearance

Galvanized corrugated roof sheet forming machineGalvanized corrugated roof sheet forming machine

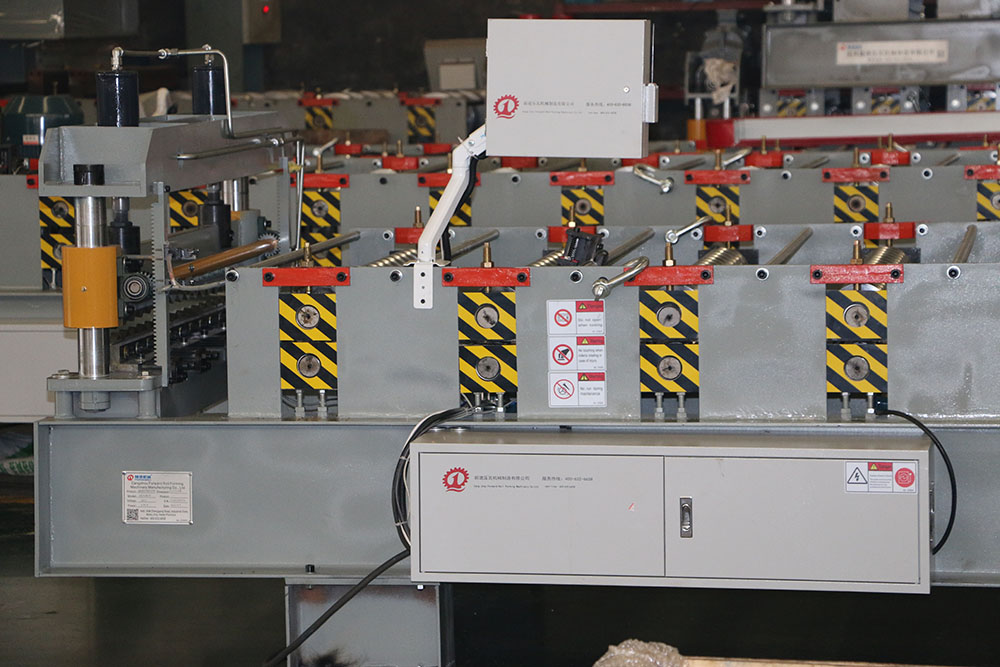

Main Components

Galvanized corrugated roof sheet forming machine

Technical Specification

Corrugated Roof Sheet Roll Forming Machine is widely used in various industrial plants, civil buildings, warehouses and simple steel structures.  It has the characteristics of beautiful appearance and durability.  They include copper, aluminum, zinc alloy, and stainless steel, and the most popular and economical raw materials a corrugated sheet roll forming machine usually handles with are prepainted steel, galvanized steel and Alu-zinc steel.

Production Parameters

Technical parameters:

Raw material
GI, PPGI, Aluminum coils
Material thickness range
0.3-0.8mm
Rollers
18 rows
Material of rollers
45# steel with chromed
Forming speed
15m/min(excluding cutting time)
Shaft material and diameter75mm, material is 40Cr
Material of cutting blade
Cr12 mould steel with quenched treatment
Controlling system
Delta PLC computer control system with Chrizi inverter to ensure precision
Program is made by English, working mode: automatic and manual
Way of driven
1'' chain transmission
Voltage
380V/3Phase/50Hz or at your request
Main motor power
5.5KW
Hydraulic station power
3KW

Package Type:

NUDE
